CrankSense: Wireless Crankshaft Deflection Test Kit

  • CrankSense by Motionics is a wireless crankshaft measurement test kit that utilizes a Motionics Bluetooth crankshaft gage. Using an iPad or Windows PC, users can now easily and accurately record deflection data.
  • Built-in angle measurement means there is no need to mark test points on the crankshaft web. The Crankshaft Test app will display the crankshaft angle and notify users once the crankshaft rotates to test locations.
  • In the Windows software, you can automatically take deflection measurements at set test points. PDF test reports can be generated and stored at the end of each test.

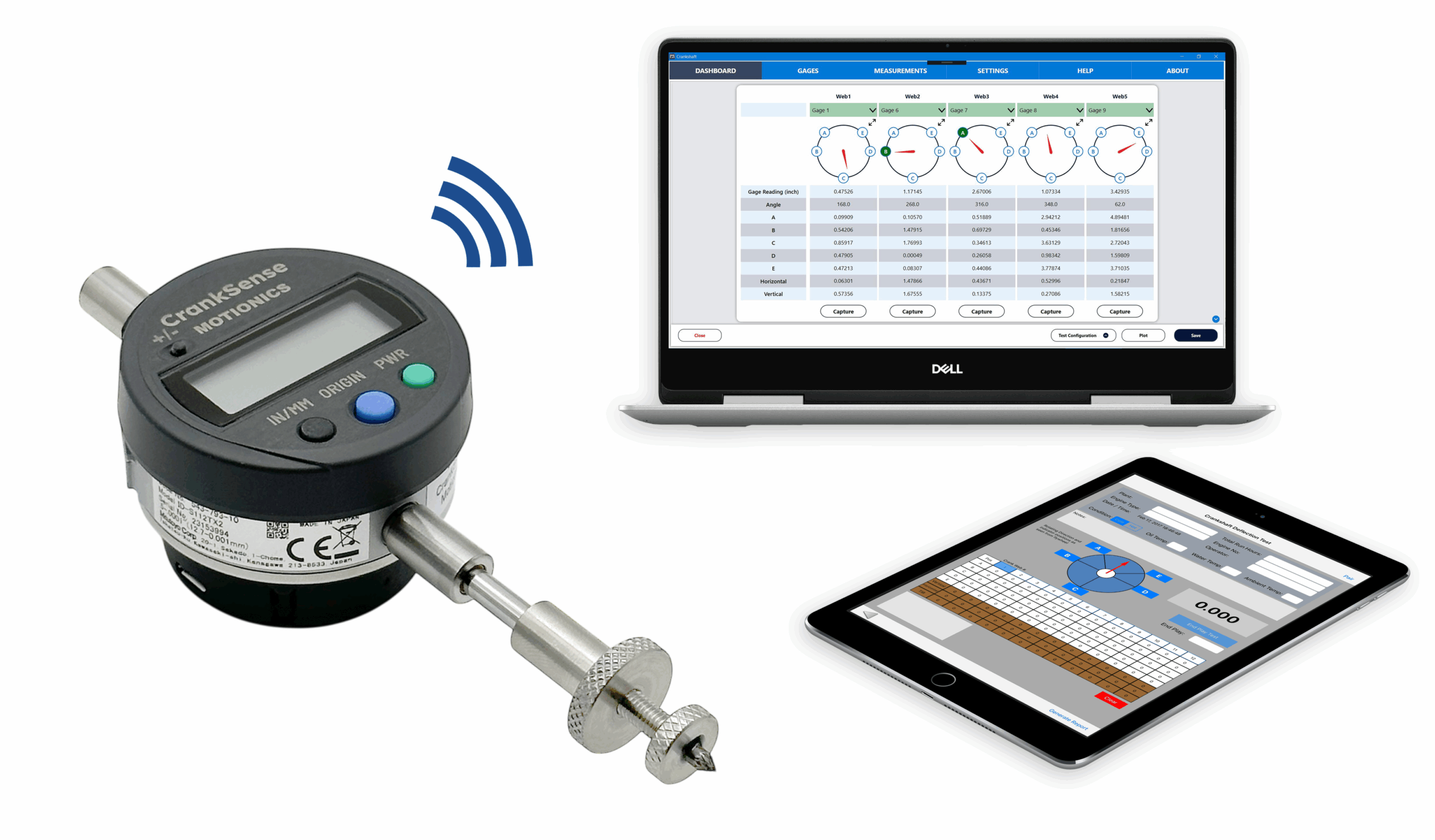

CrankSense Bluetooth crankshaft deflection gauge with Windows and iPad app interface

CrankSense: WIRELESS CRANKSHAFT DEFLECTION TEST KIT

  • CrankSense by Motionics is a wireless crankshaft measurement test kit that uses a Motionics Bluetooth crankshaft gauge. Using an iPad or Windows PC, users can now easily and accurately record deflection data.
  • Built-in angle measurement means there is no need to mark test points on the crankshaft web. The Crankshaft Test app will display the crankshaft angle and notify users once the crankshaft rotates to test locations.
  • In the Windows software, you can automatically take deflection measurements at set test points. PDF test reports can be generated and stored at the end of each test.

CrankSense: Wireless Crankshaft Deflection Test Kit

  • CrankSense by Motionics is a wireless crankshaft measurement test kit that utilizes a Motionics Bluetooth crankshaft gage. Using an iPad or Windows PC, users can now easily and accurately record deflection data.
  • Built-in angle measurement means there is no need to mark test points on the crankshaft web. The Crankshaft Test app will display the crankshaft angle and notify users once the crankshaft rotates to test locations.
  • In the Windows software, you can automatically take deflection measurements at set test points. PDF test reports can be generated and stored at the end of each test.
  • WHY USE CRANKSENSE?

INCREASE TEST
ACCURACY

IMPROVE USER
PRODUCTIVITY

enhance WOrKER
SAFETY

EXPEDITE DATA
COLLECTION

REDUCE
HUMAN ERROR

ELIMINATE LOOSE
CABLES

  • WHY USE CRANKSENSE?

INCREASE TEST
ACCURACY

IMPROVE USER
PRODUCTIVITY

enhance WOrKER
SAFETY

EXPEDITE DATA
COLLECTION

REDUCE
HUMAN ERROR

ELIMINATE LOOSE
CABLES

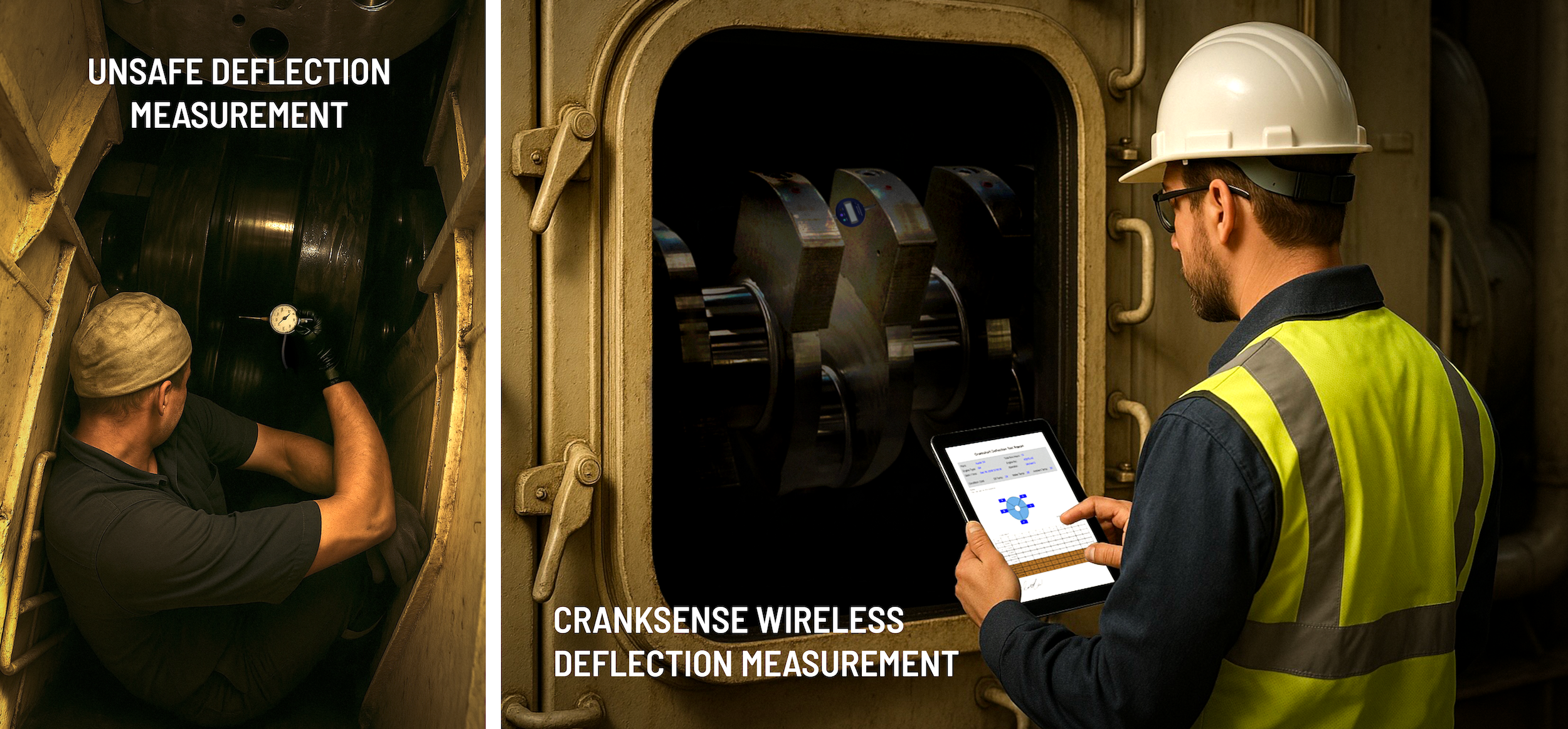

Side-by-side comparison of unsafe manual crankshaft deflection measurement and CrankSense wireless gauge with iPad for safer, remote data capture

CRANKSENSE GAUGE

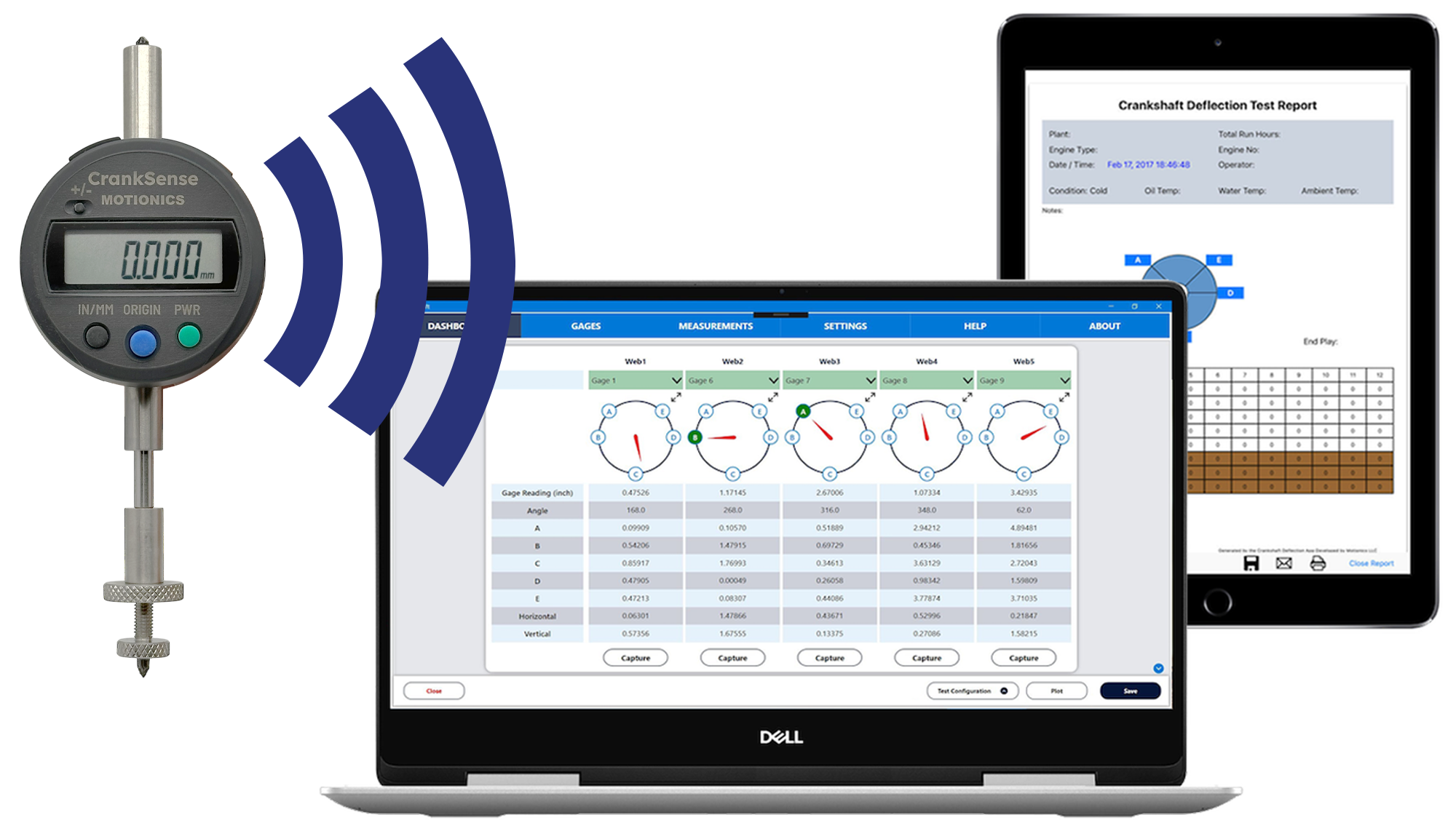

CrankSense wireless Bluetooth deflection gauge transmitting data to Windows software and iPad report interface
  • BLUETOOTH CONNECTIVITY
  • CrankSense’s Bluetooth technology allows for real time data collection and transmission. Automatic wireless transfers maximize worker safety while minimizing the risk of human error.
  • ANGLE TILT SENSORS​
  • The built-in rotating tilt angle sensor continuously detects the crankshaft’s angular position and displays it live in the software. This enables users to capture deflection readings at the correct position. Automatic data capture at predefined angles is supported in the Windows software.

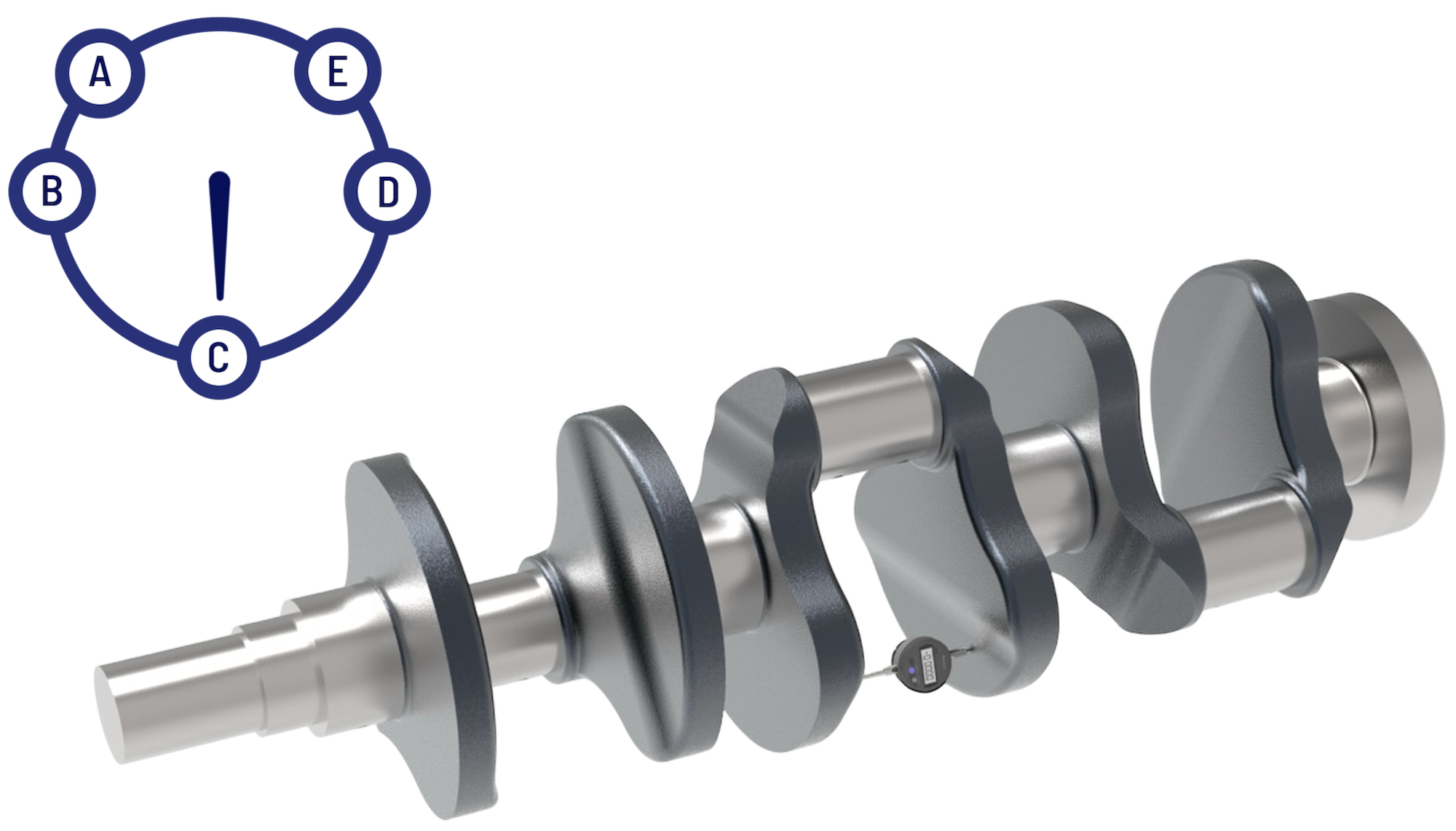

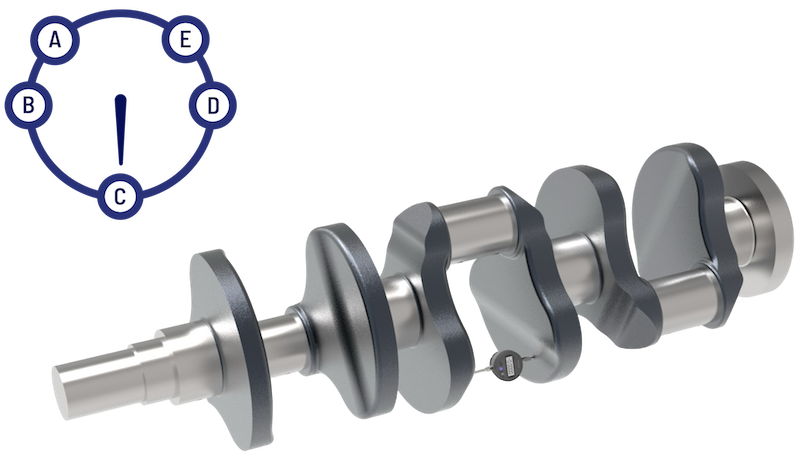

CrankSense crankshaft deflection illustration with angle reference positions and mounted Bluetooth gauge
  • ANGLE TILT SENSORS​
  • The built-in rotating tilt angle sensor continuously detects the crankshaft’s angular position and displays it live in the software. This enables users to capture deflection readings at the correct position. Automatic data capture at predefined angles is supported in the Windows software.

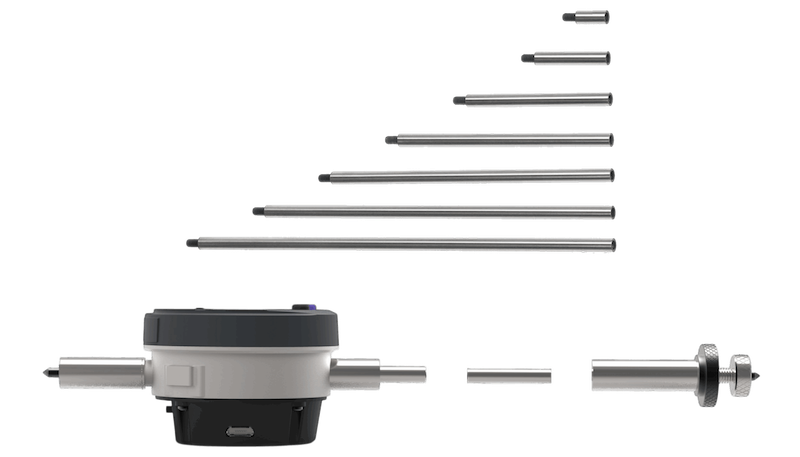

CrankSense gauge with full set of extension rods and mounting components for crankshaft deflection testing
  • ADJUSTABLE GAUGE SIZE
  • CrankSense includes an extension rod set and adjustable attachments, allowing the gauge length to be tailored for various web gap distances. Standard gauge lengths are listed in the Spec Sheet table. Custom configurations are also available. Contact us to discuss your specific requirements.
  • ADJUSTABLE GAUGE SIZE
  • CrankSense includes an extension rod set and adjustable attachments, allowing the gauge length to be tailored for various web gap distances. Standard gauge lengths are listed in the Spec Sheet table. Custom configurations are also available. Contact us to discuss your specific requirements.
  • RECHARGABLE TRANSMITTER BATTERY
  • The CrankSense wireless transmitter has a battery life of 30hrs on a full charge and is recharged by the MicroUSB port on the back of the device. The digital dial operates on a SR44 or LR44 coin battery and is replaceable.

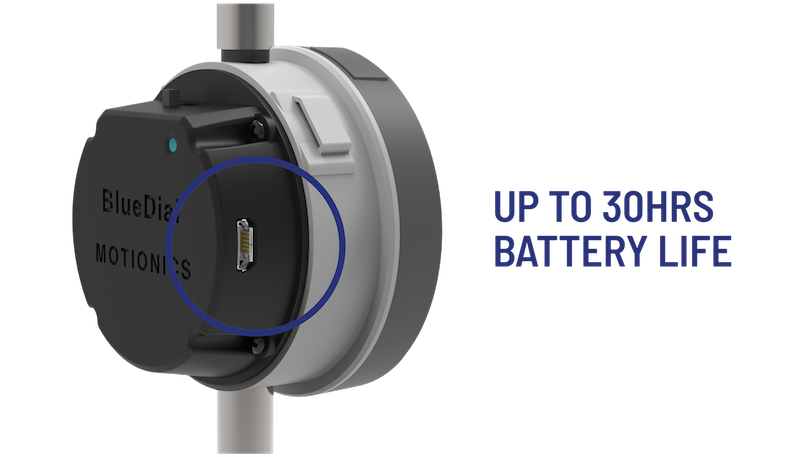

Rear view of CrankSense Bluetooth gauge highlighting USB charging port and 30-hour battery life feature
  • RECHARGABLE TRANSMITTER BATTERY
  • The CrankSense wireless transmitter has a battery life of 30hrs on a full charge and is recharged by the MicroUSB port on the back of the device. The digital dial operates on a SR44 or LR44 coin battery and is replaceable.
Tangled sensor cables representing traditional wired crankshaft measurement setup
  • WIRELESS DESIGN
  • CrankSense’s innovative standalone gauge design enables wire-free crankshaft deflection testing, allowing operators to take precise and accurate measurements from a safe distance.
  • WIRELESS DESIGN
  • CrankSense’s innovative standalone gauge design enables wire-free crankshaft deflection testing, allowing operators to take precise and accurate measurements from a safe distance.

CRANKSENSE KIT

  • Included in the Kit
  • Wireless CrankSense Gauge
  • Extension Rod Set
  • BLE USB Dongle
  • CrankSense Coin Battery
  • USB Power Adapter
  • USB Charging Cable
  • Protective CrankSense Case
  • Optional Extras
  • Extended 3 Year Warranty
  • Manufacturer Calibration
  • iPad with Protective Case

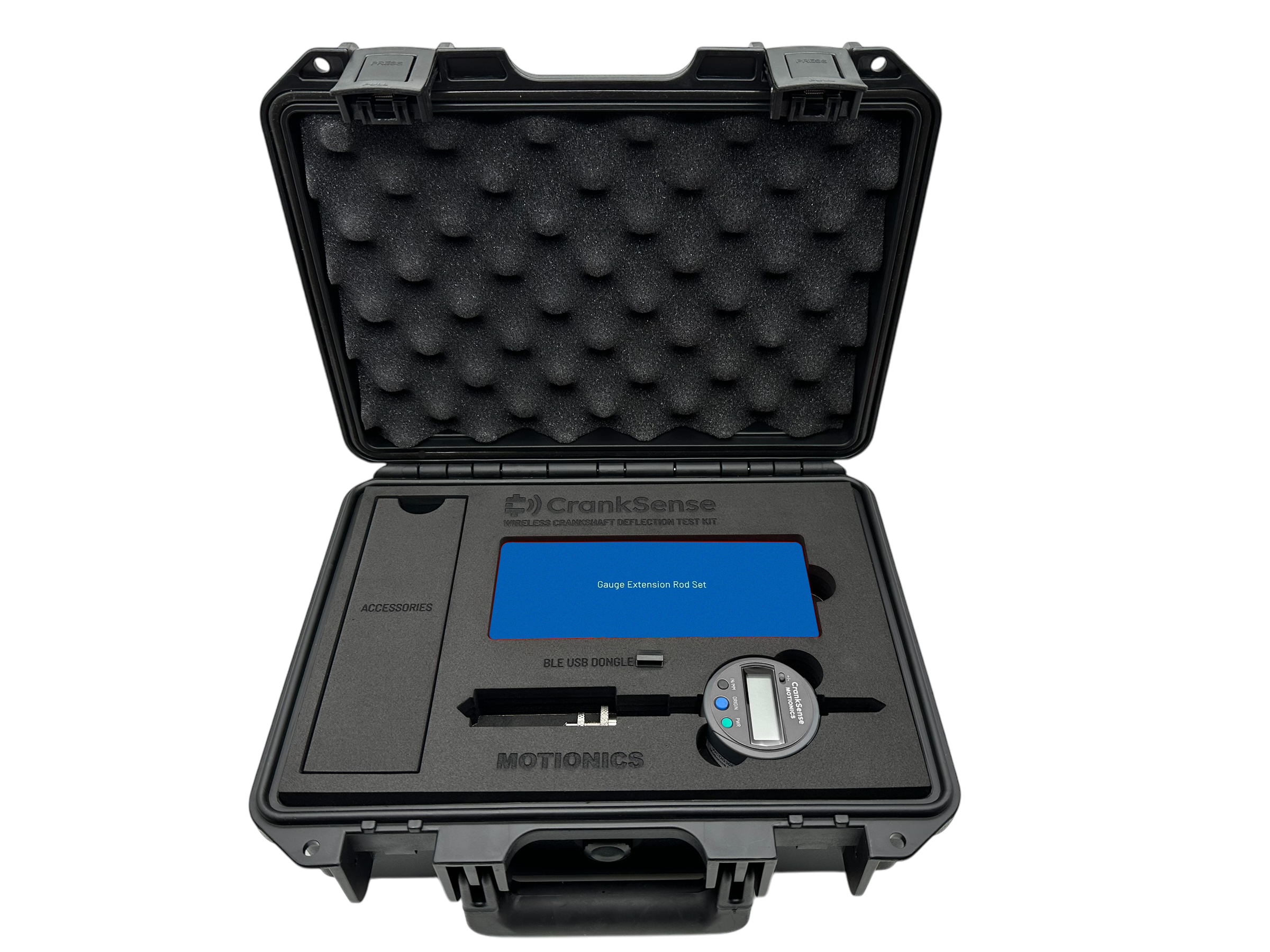

CrankSense wireless crankshaft deflection test kit with accessories, USB dongle, and gauge packed in protective hard case
  • Included in the Kit
  • Wireless CrankSense Gauge
  • Extension Rod Set
  • BLE USB Dongle
  • CrankSense Coin Battery
  • USB Power Adapter
  • USB Charging Cable
  • Protective CrankSense Case
  • Optional Extras
  • Extended 3 Year Warranty
  • Manufacturer Calibration
  • iPad with Protective Case

Product Specification

  • Resolution
  • 0.0001″ (0.003mm)
  • Measurement Range
  • 0.4″ (10mm)
  • Connectivity
  • Bluetooth 4.0
  • Accuracy
  • ±0.00012" (0.003mm)
  • Wireless Data Transmission Rate
  • 10Hz
  • Transmission Range
  • 65ft (20m) indoors/ 100ft (30m) outdoors
  • Crankshaft Web Gap Range
  • 5.59-27.09″ (142-703mm)
  • Customize model covers shorter ranges down to 3.94″ (100mm)
  • Working Temperature
  • 32-122°F (0-50°C)
  • Transmitter Battery
  • 400mAh Rechargeable / 30hrs
  • Digital Dial Battery
  • Replaceable SR44 or LR44 coin battery / 2 years
  • Charging
  • 5VDC USB
  • Angle Measurement Resolution
  • Built-in Rotating Angle Measurement with 1° Resolution

SOFTWARE

CrankSense for iPad

  • CrankSense is an iPad application that allows for the wireless measuring and recording of crankshaft deflection.
Download

CrankSense for Windows

  • CrankSense for Windows is used with the included USB Dongle, allowing users to stream readings to Windows PCs.
Download
  • Wireless Data Recording
  • Rotating Angle Indicator
  • Table Organized Results
  • Automatic Test Point Notifications
  • Automatic Vertical/ Horizontal Deflection Calculation
  • End Play Test Included
  • Test Report Generation
  • Tester Signature
  • Local Report Storage Manager
  • Email Reports
  • Wireless Print Reports
  • CRANKSENSE SOFTWARE FEATURES
  • Wireless Data Recording
  • Automatic Test Point Notifications
  • Test Report Generation
  • Email Reports
  • Tilt Angle Indicator
  • Automatic Deflection Calculations
  • Tester Signature
  • Wireless Print Reports
  • Table Organized Results
  • End Play Test Included
  • Local Report Storage Manager
  • Engine Configuration Settings
  • Wireless Data Recording
  • Automatic Test Point Notifications
  • Test Report Generation
  • Email Reports
  • Tilt Angle Indicator
  • Automatic Deflection Calculations
  • Tester Signature
  • Wireless Print Reports
  • Table Organized Results
  • End Play Test Included
  • Local Report Storage Manager
  • Edit Engine Configuration
CrankSense Bluetooth crankshaft deflection gauge with Windows and iPad app interface
  • WIRELESS DATA RECORDING
  • When used with Motionics’ CrankSense wireless gauge(s), the software allows the user to view and record angle and deflection measurements for crankshaft web gaps remotely, in real time, on your iPad or Windows PC.​
  • WIRELESS DATA RECORDING
  • When used with Motionics’ CrankSense wireless gauge(s), the software allows the user to view and record angle and deflection measurements for crankshaft web gaps remotely, in real time, on your iPad or Windows PC.​
  • SIMULTANEOUS TESTING WITH MULTIPLE GAUGES
  • With CrankSense for Windows, your PC can connect to multiple gauges, displaying and recording data simultaneously. This allows you to conduct a crankshaft deflection test with live data recording from multiple webs.
CrankSense software gauge readout interface for crankshaft deflection testing on laptop
  • SIMULTANEOUS TESTING WITH MULTIPLE GAUGES
  • With CrankSense for Windows, your PC can connect to multiple gauges, displaying and recording data simultaneously. This allows you to conduct a crankshaft deflection test with live data recording from multiple webs.

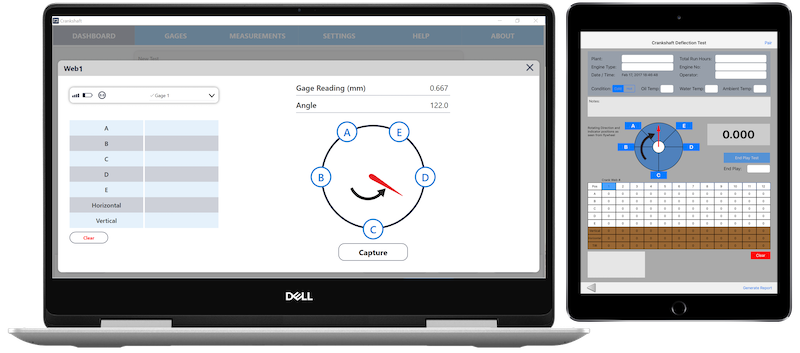

CrankSense software showing rotating angle indicator for crankshaft deflection test on laptop and iPad
  • ROTATING ANGLE INDICATOR
  • Motionics’ wireless CrankSense gauge has a built-in angle sensor, and the software displays this angle as a rotating needle on the dashboard so you can visualize the crankshaft’s rotation in the software.
  • ROTATING ANGLE INDICATOR
  • Motionics’ wireless CrankSense gauge has a built-in angle sensor, and the software displays this angle as a rotating needle on the dashboard so you can visualize the crankshaft’s rotation in the software.
  • AUTOMATIC TEST POINT NOTIFICATION
  • When the gauge reaches a test point, the point changes color to indicate when measurements should be captured in manual test mode. The user can also select auto test mode, enabling the software to automatically capture readings at test locations when the crankshaft rotates to the right test point.

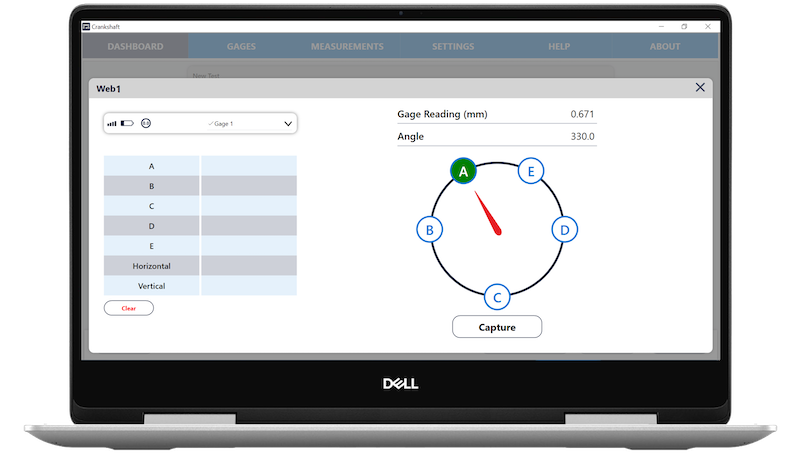

CrankSense software showing gauge reading and test point selection on a laptop screen
  • AUTOMATIC TEST POINT NOTIFICATION
  • When the gauge reaches a test point, the point changes color to indicate when measurements should be captured in manual test mode. The user can also select auto test mode, enabling the software to automatically capture readings at test locations when the crankshaft rotates to the right test point.
CrankSense software showing deflection test report and engine configuration on laptop and iPad
  • MEASUREMENT RESULT TABLES
  • Both CrankSense for Windows and the CrankSense iPad app allow users to view all the data collected in an organized chart during, and after, the test.
  • MEASUREMENT RESULT TABLES
  • Both CrankSense for Windows and the CrankSense iPad app allow users to view all the data collected in an organized chart during, and after, the test.
  • AUTOMATIC VERTICAL/HORIZONTAL DEFLECTION CALCULATION
  • Vertical and horizontal deflection values are calculated and displayed automatically in real time as deflection readings are taken at set test points.

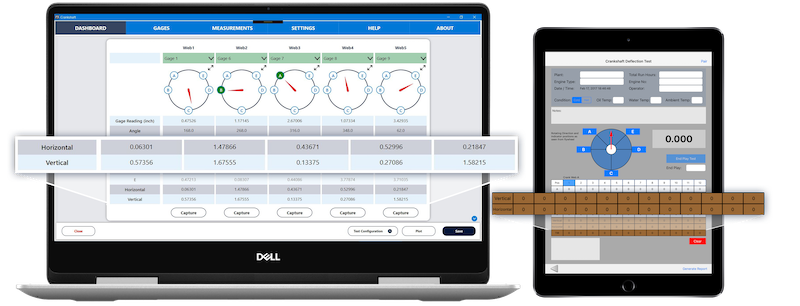

CrankSense software displaying automatic horizontal and vertical crankshaft deflection calculation on laptop and iPad
  • AUTOMATIC VERTICAL/HORIZONTAL DEFLECTION CALCULATION
  • Vertical and horizontal deflection values are calculated and displayed automatically in real time as deflection readings are taken at set test points.

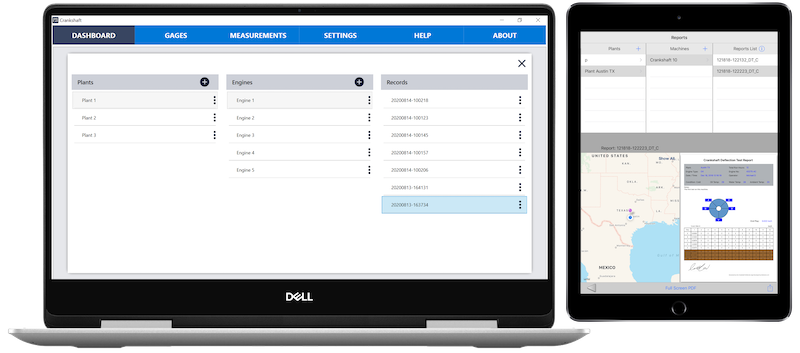

CrankSense iPad interface showing local record manager with saved engine deflection test data
  • LOCAL RECORD MANAGER
  • Test records are stored locally in the software in a ‘Plant>Engine>Record’ structure. The user can access test records at any time under the Measurements tab to review test results, export test data in a CSV file or generate a test report.
  • LOCAL RECORD MANAGER
  • Test records are stored locally in the software in a ‘Plant>Engine>Record’ structure. The user can access test records at any time under the Measurements tab to review test results, export test data in a CSV file or generate a test report.
  • COMPARISON OF DEFLECTION TESTS
  • In CrankSense for Windows, you can select multiple records to compare crankshaft deflection changes over time in chart and graph forms.

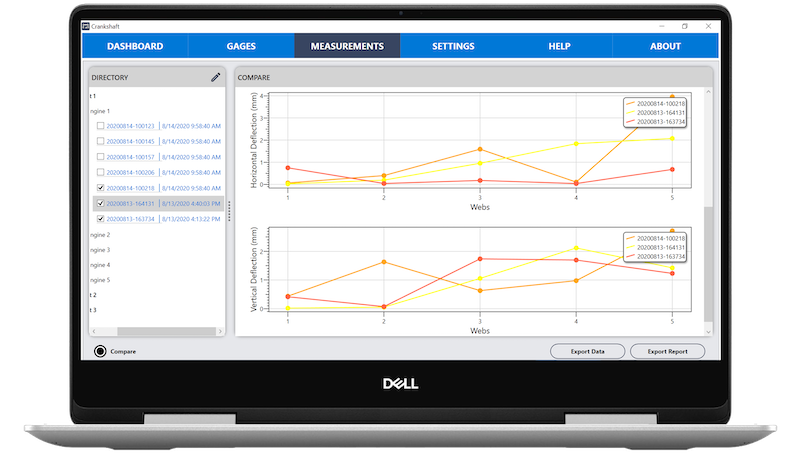

CrankSense software displaying crankshaft deflection test comparison charts across multiple engine webs
  • COMPARISON OF DEFLECTION TESTS
  • In CrankSense for Windows, you can select multiple records to compare crankshaft deflection changes over time in chart and graph forms.

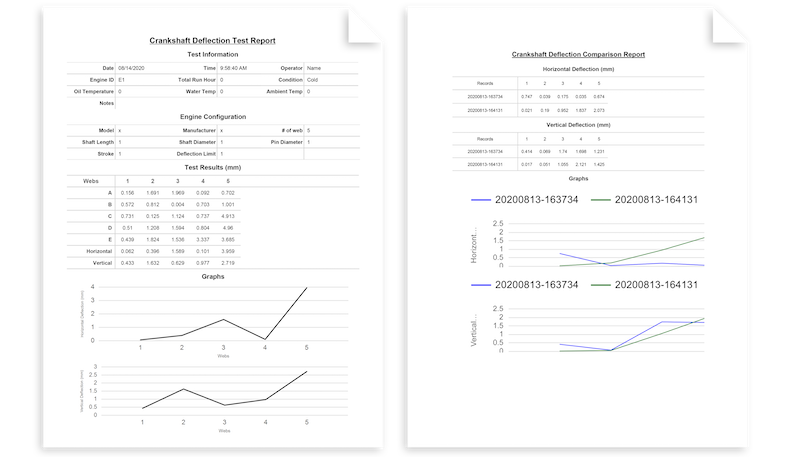

Sample deflection test report generated by CrankSense software showing measurement data and engine setup
  • TEST REPORT GENERATION
  • After conducting your test, you can generate a test report, either for comparing multiple tests (Windows only) or for a single test (both iPad app and Windows).
  • TEST REPORT GENERATION
  • After conducting your test, you can generate a test report, either for comparing multiple tests (Windows only) or for a single test (both iPad app and Windows).
  • SAVING ENGINE CONFIGURATION
  • You can edit engine configuration details, such as model, manufacturer, number of webs, and length. In the Windows software, you can save engine configurations in a local library for reuse in future tests.

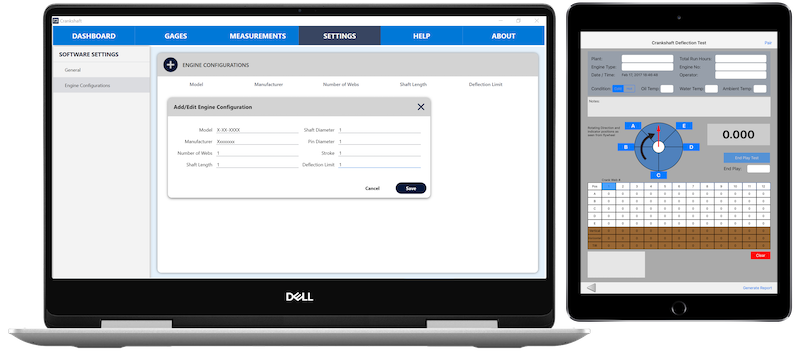

CrankSense interface showing saved engine configuration settings and parameters
  • SAVING ENGINE CONFIGURATION
  • You can edit engine configuration details, such as model, manufacturer, number of webs, and length. In the Windows software, you can save engine configurations in a local library for reuse in future tests.

PRODUCT Support Videos

CrankSense: Wireless Crankshaft Deflection Test Kit
INTRODUCTION
CrankSense: Wireless Crankshaft Deflection Test Kit
HOW IT WORKS
CrankSense: Wireless Crankshaft Deflection Test Kit
CRANKSENSE FOR WINDOWS
WINDOWS SOFTWARE
CrankSense: Wireless Crankshaft Deflection Test Kit
MEASURING CRANKSHAFT DEFLECTION
MEASURING DEFLECTION
CrankSense: Wireless Crankshaft Deflection Test Kit
GAUGE OVERVIEW
Explore 100+ similar tutorials and product support videos on the Motionics YouTube channel.
WATCH NOW

FAQs

  • PRODUCT

The CrankSense gauge is powered by two separate batteries. A Coin SR44 battery for the digital dial and a rechargeable Li-Po battery for the Bluetooth transmitter. Once fully charged, the Bluetooth transmitter provides up to 30 hours of continuous operation. The Bluetooth transmitter is easily recharged via the MicroUSB port located on the back of the gauge.

For any gauge including CrankSense, we recommend annual calibration of the device. The requirements can vary depending on your company’s internal quality control/ inspection policy.

For a new Cranksense kit, you need to add a calibration certificate to your order. The certificate can be added by visiting the following link and selecting ‘Manufacturer Calibration Wireless Crankshaft Deflection Gauge’ from the dropdown menu: Add Calibration Certificate

If you already have a CrankSense gauge and need calibration, contact us at info@motionics.com for more information.

Calibration of a CrankSense gauge will usually take 2-3 days after we receive the unit.

We are able to create custom web distance ranges for most industrial applications. Contact us for more information.

  • SOFTWARE

Yes, the CrankSense kit includes software applications for both Windows and iPadOS platforms, enabling users to conduct tests and analyze data on their preferred device. Both the CrankSense Windows software and the CrankSense iPad app are available to download for free with the purchase of a CrankSense kit.

The CrankSense app is available for iPad, and CrankSense for Windows is supported on Windows PCs running Windows 7 or later.

You can download the CrankSense iPad app here.

For more information on using the iPad app, review the CrankSense Product User Guide.

You can download CrankSense for Windows here.

For more information on using the CrankSense Windows software, review the CrankSense Product User Guide.

  • WARRANTY

CrankSense’s Limited Warranty is included for free with purchase and provides 1 year of coverage for all defects in material and workmanship from the date of shipment to buyer. For more information visit: www.motionics.com/warranty.

With CrankSense’s Extended Warranty, your coverage will extend to 3 years from original shipment date of the device and adds coverage for up to two accidental damages (each subject to a service fee plus applicable tax). The warranty prices and service fees vary upon each individual device. For full details visit www.motionics.com/warranty.

If you are purchasing a new CrankSense gauge, select the option from the dropdown menu on this page when adding a kit to your order.

If you already own a CrankSense gauge and would like to extend your warranty, contact us.

  • FURTHER SUPPORT

If you are unable to connect the CrankSense gauge to your device via Bluetooth, make sure BOTH the Bluetooth transmitter and digital indicator are turned on before pairing. If the issue persists, please refer to the Product User Guide or contact us.

We are able to offer repairs for damage and can provide spare parts. Please contact us for more details.

If you require further technical support, please click here.

You can get in touch with us directly by using our Contact page.

  • SOFTWARE

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

  • WARRANTY

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

Lorem ipsum dolor sit amet, consectetur adipiscing elit. Ut elit tellus, luctus nec ullamcorper mattis, pulvinar dapibus leo.

WHAT IS INCLUDED IN THE STANDARD WARRANTY?
Answer goes here...
WHAT IS INCLUDED IN THE EXTENDED WARRANTY?
Answer goes here...

PRODUCT DOCUMENTS

  • Brochure
  • User Guide
  • Spec Sheet
  • CrankSense Gauge Dimensions

PRODUCT DOCUMENTS

  • Brochure
  • User Guide
  • Spec Sheet
  • Crankshaft Gauge Dimensions
  • Flyer
  • Full Motionics Product Catalog
  • BUY CRANKSENSE

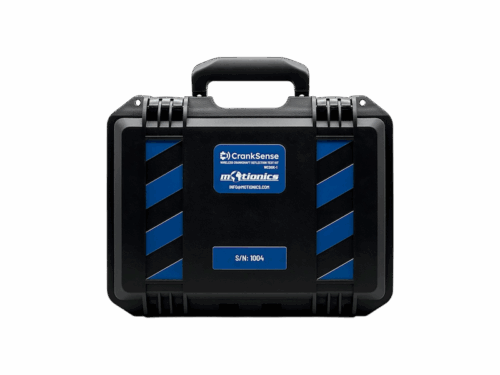

CrankSense wireless crankshaft deflection test kit stored in a custom protective carrying case

CrankSense: Wireless Crankshaft Deflection Test Kit

CrankSense is a wireless crankshaft measurement test kit that utilizes a Motionics Bluetooth crankshaft gauge. Using an iPad or Windows PC, users can now easily and accurately record deflection data.

BUY NOW

You may also like...

Wireless Rotor Runout Kit

The Wireless Rotor Runout Kit from Motionics is a novel tool for rotor runout measurement. It consists of a Bluetooth dial indicator, a Bluetooth angle sensor and an iPad application.

LEARN MORE

Wireless Hydraulic Pressure Test Kit

The Wireless Hydraulic Pressure Test Kit from Motionics is your solution for safe, efficient pressure testing with heavy machinery.

LEARN MORE

Wireless Pile Load Test Kit

The Wireless Pile Load Test Kit measures pile deflection under different load conditions on an iPad/ PC with Bluetooth dial indicators and either a Bluetooth pressure sensor or a wireless force gauge.

LEARN MORE
CrankSense logo – Wireless Crankshaft Deflection Test Kit by Motionics
© Copyright 2025 | Motionics, LLC | All rights reserved.
CrankSense logo – Wireless Crankshaft Deflection Test Kit by Motionics
  • (205) 264-1896
